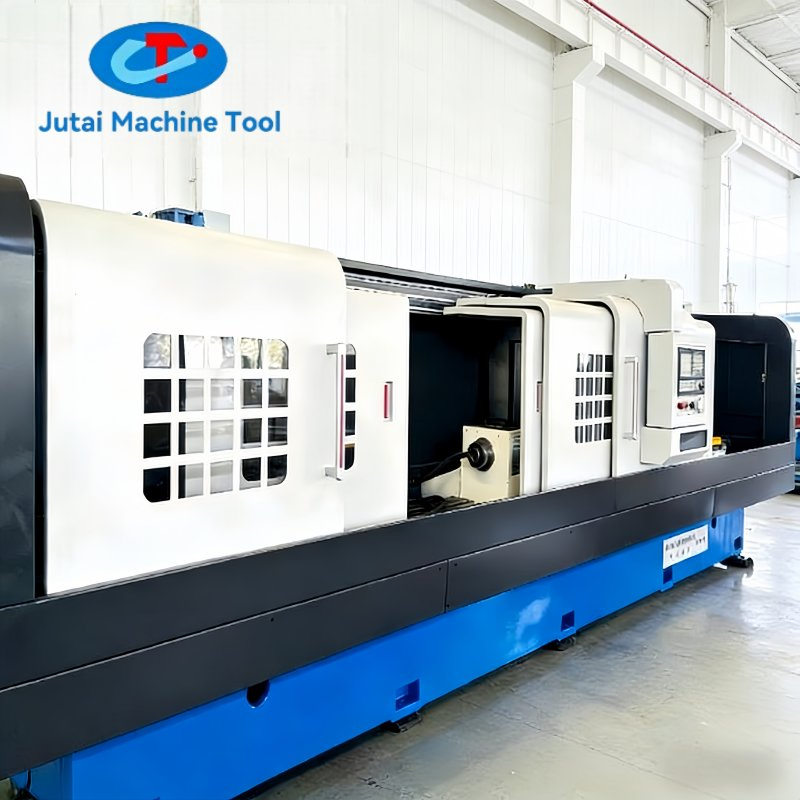

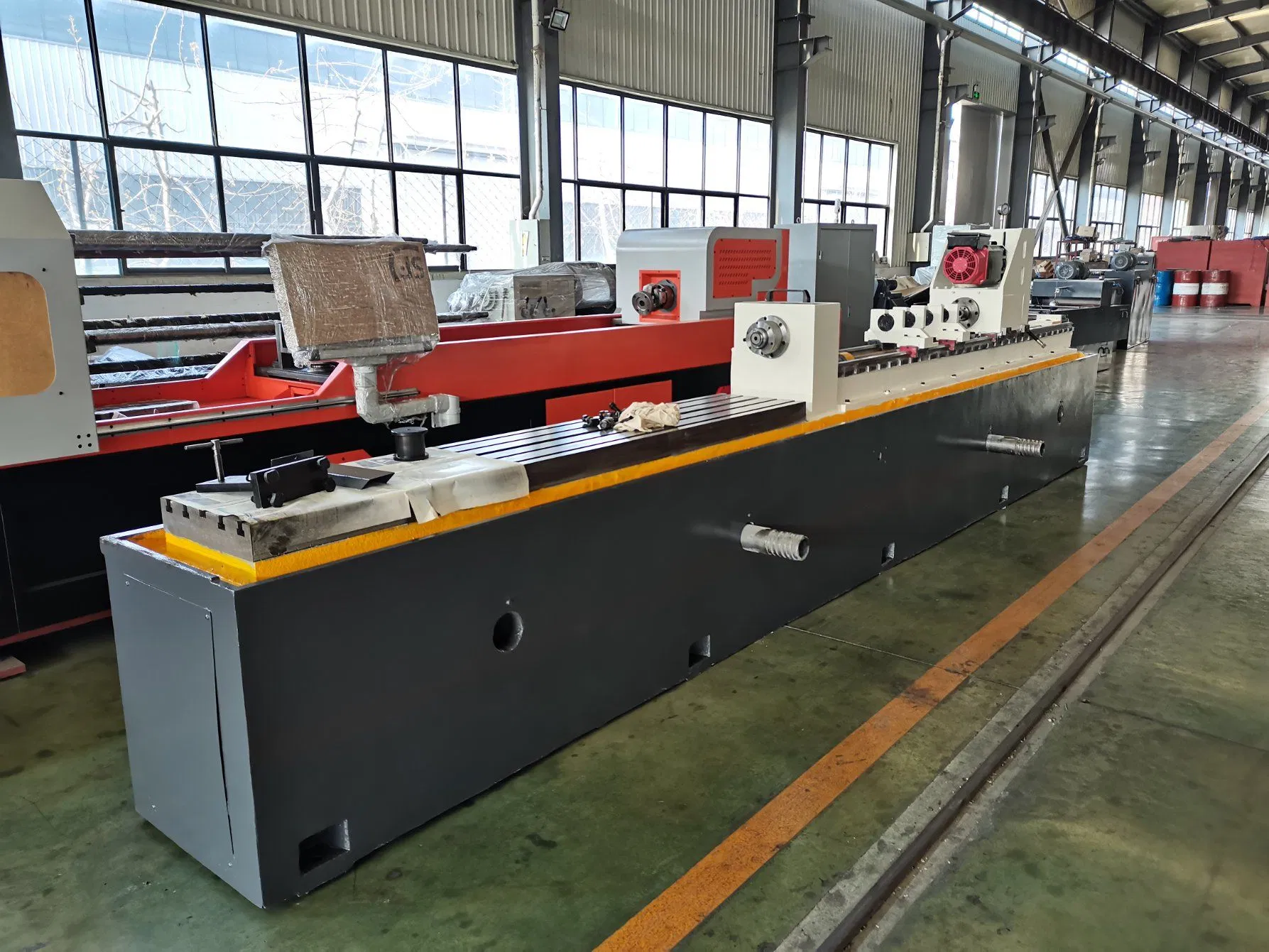

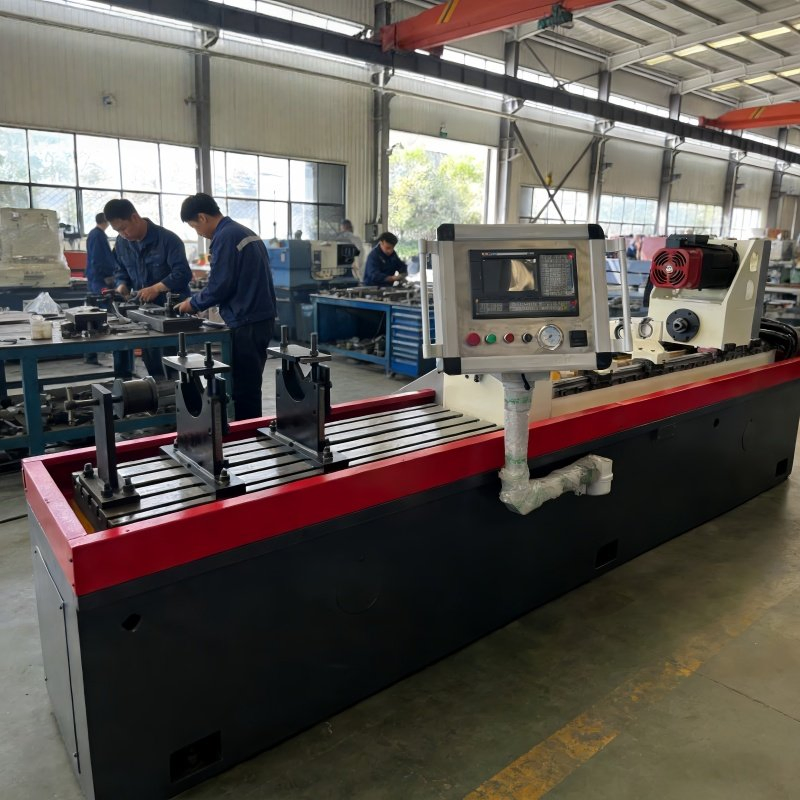

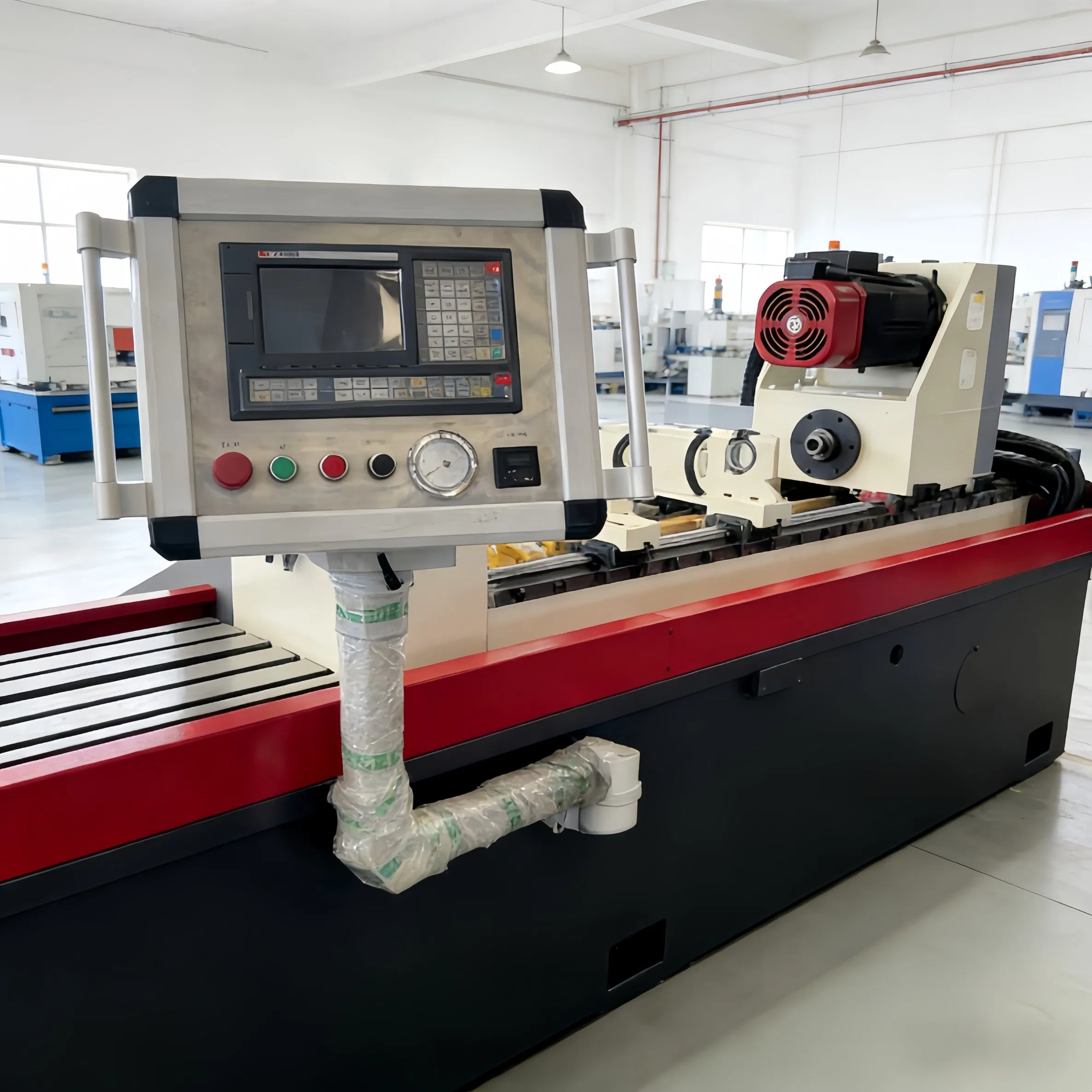

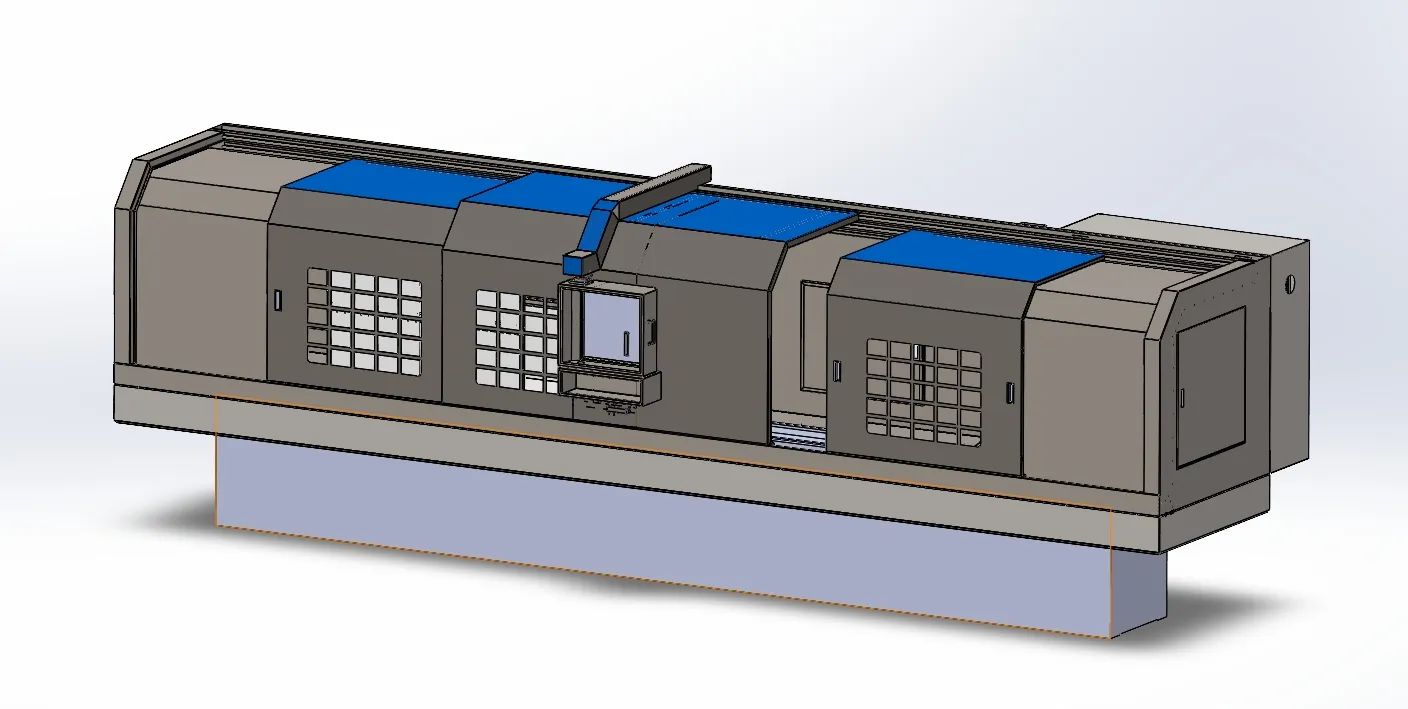

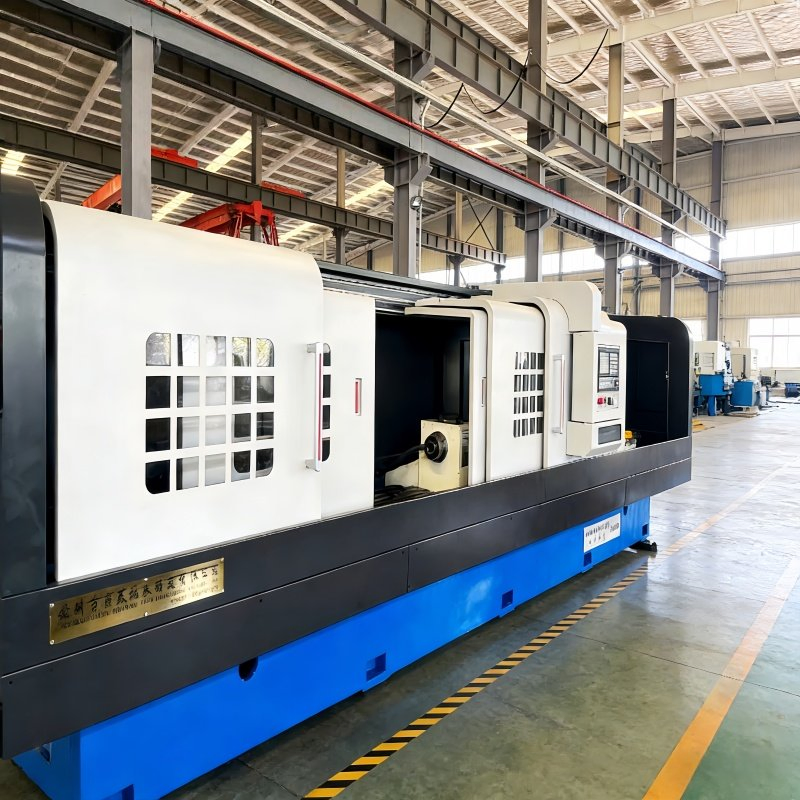

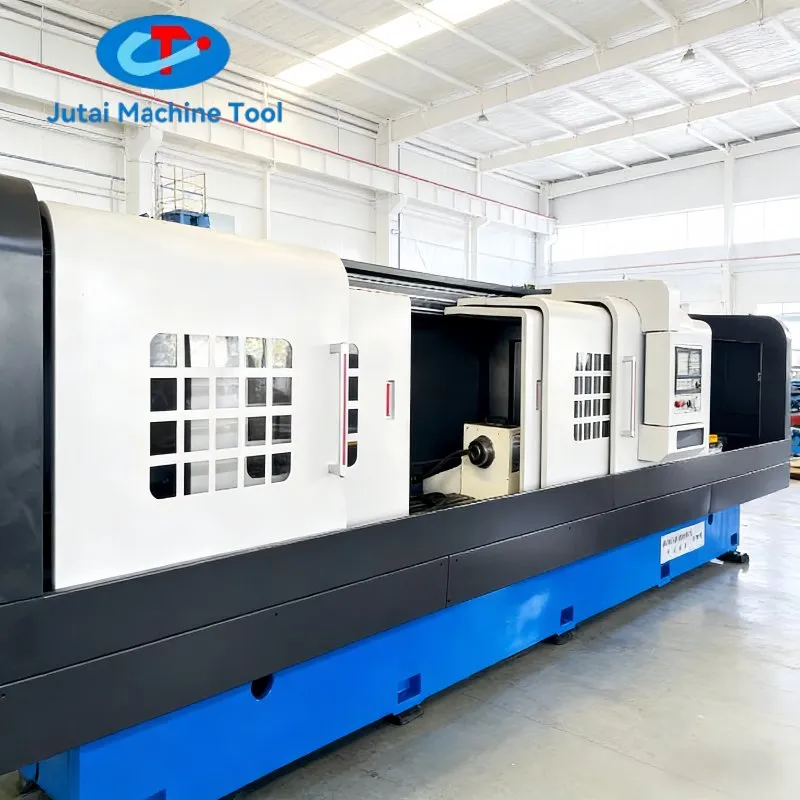

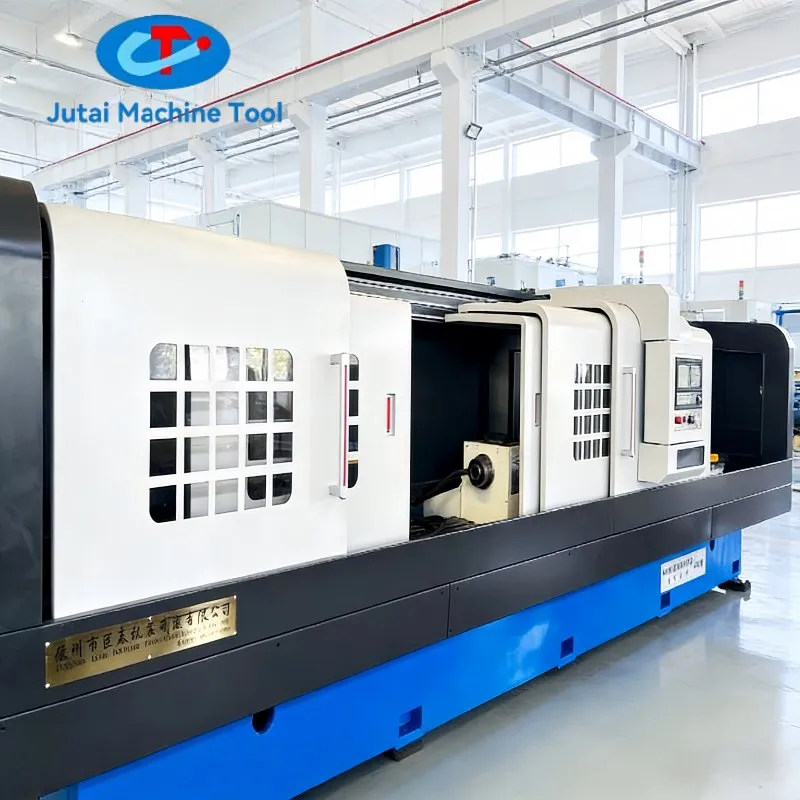

CNC Deep Hole Drilling Machine is professional finishing equipment for deep-hole workpieces. It uses an advanced CNC system and heavy-duty structure, widely applied in hydraulic cylinders, cylinder tubes, auto parts, and engineering machinery processing.
| Model | ZK2103 | Structure | Deep Hole Drilling |
|---|---|---|---|
| Layout | Horizontal | Controlling Mode | CNC |
| Hole Diameter | 50-100mm | Automatic Grade | Automatic |
| Precision | High Precision | Certification | ISO 9001 |
| Drilling Diameter Range | 3-30 mm | Max Drilling Depth | Up to 2500 mm |
| Spindle Speed | 50-3000 R/Min | CNC System | KND |
This machine tool adopts the external chip removal drilling method (gun drilling method). A single continuous drilling operation can achieve high machining accuracy and surface roughness that usually requires multiple processes combined.
| Feature | ZK2103 (Gun Drill) | ZK2018 (Composite) |
|---|---|---|
| Drilling Range (mm) | 3-30 | 3-30 (Gun) / 30-80 (BTA) |
| Max Depth (mm) | 600 - 2500 | 600 - 2500 |
| Spindle Power (kw) | 5.5/7.5 | 22 |
| Z-axis Feed (mm/min) | 10-500 | 10-500 |
| Z-axis Traverse (m/min) | 5 | 2 |

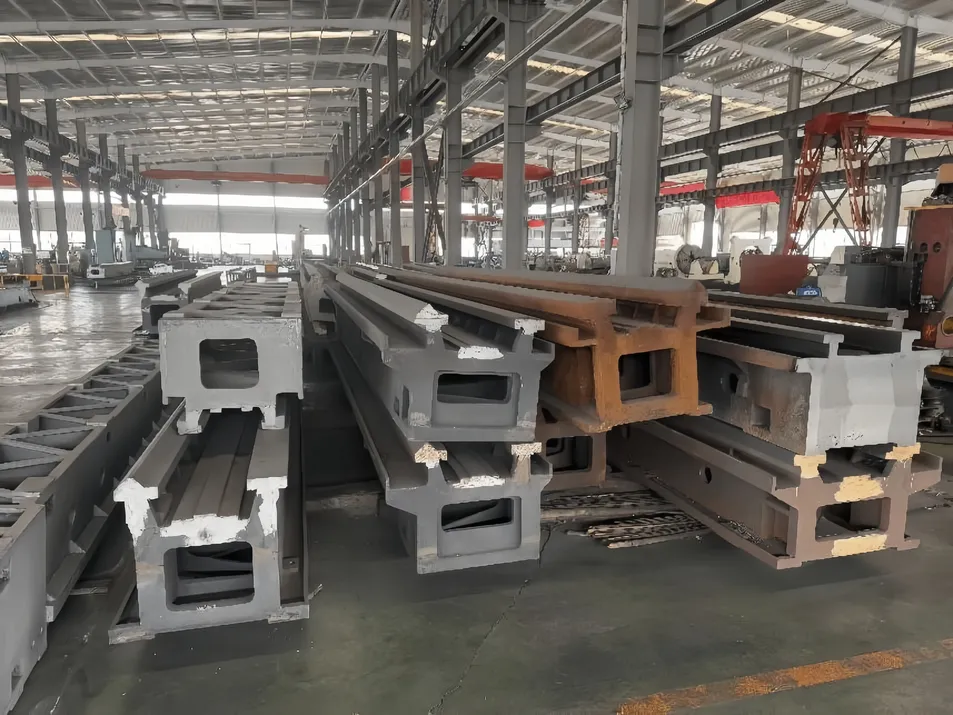

Machine Tool Bed: Fabricated from high-strength cast iron with optimized reinforcing plates for superior stability.

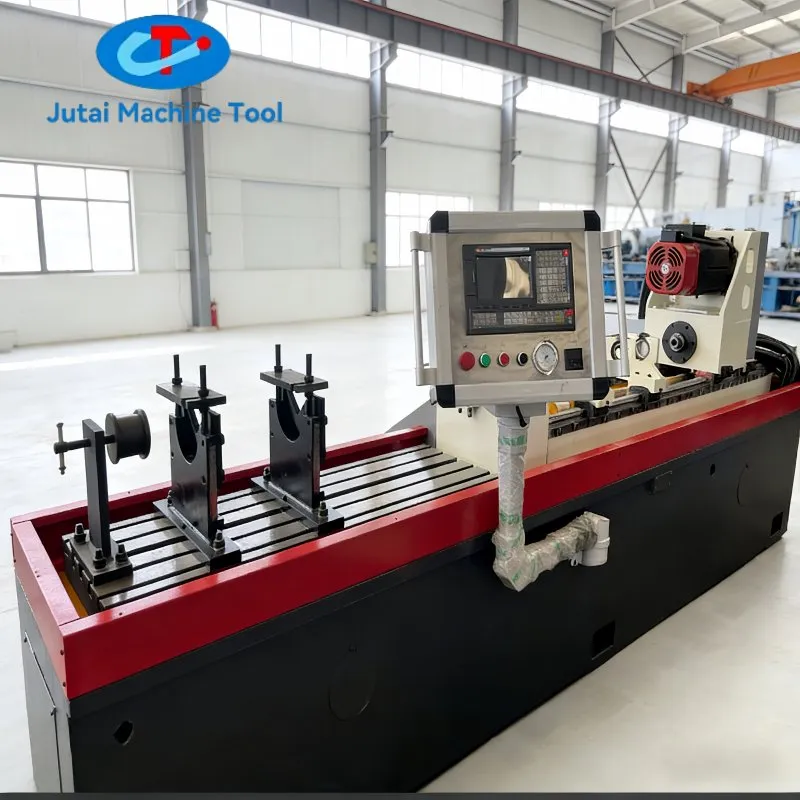

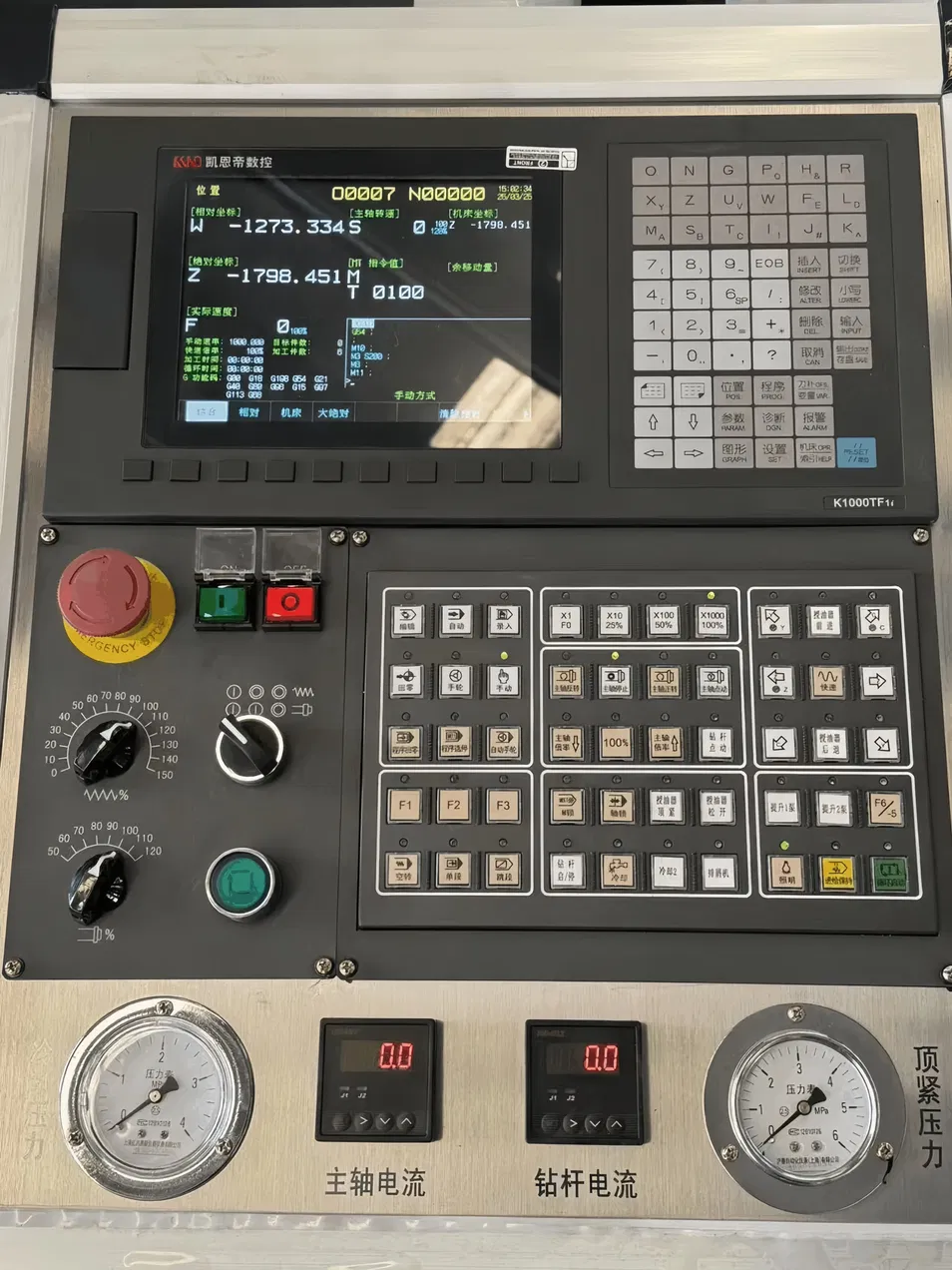

Control System: High-stability CNC systems ensuring precise movement and automated cycles.
| Package Size | 1355.00cm * 235.00cm * 270.00cm |
|---|---|
| Gross Weight | 27,000.00 kg |
| Transport Type | Wooden Box Protection |
