Customization: Available
Warranty: 1 Year
Product Type: PE Pipe
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
SJ 65/28
Name
HDPE Pipe Production Line
Screw Type
Single-screw
Automation
Automatic / Computerized
Certification
CE, ISO9001:2008
Main Motor
Siemens Brand
Inverter
ABB Brand
Temp Control
Omron Brand
Pipe Diameter
20-1200mm
Max. Output
1000 Kg/H
Screw Material
38CrMoAlA
Control System
Siemens PLC + Touch Screen
📦 Product Overview

This Extrusion Line is designed for high-efficiency PE Pipe production. The resulting pipes exhibit excellent stiffness, flexibility, heat resistance, and high mechanical strength. It is an ideal solution for urban and rural ductwork systems, including gas supply, water transport, and agricultural irrigation.

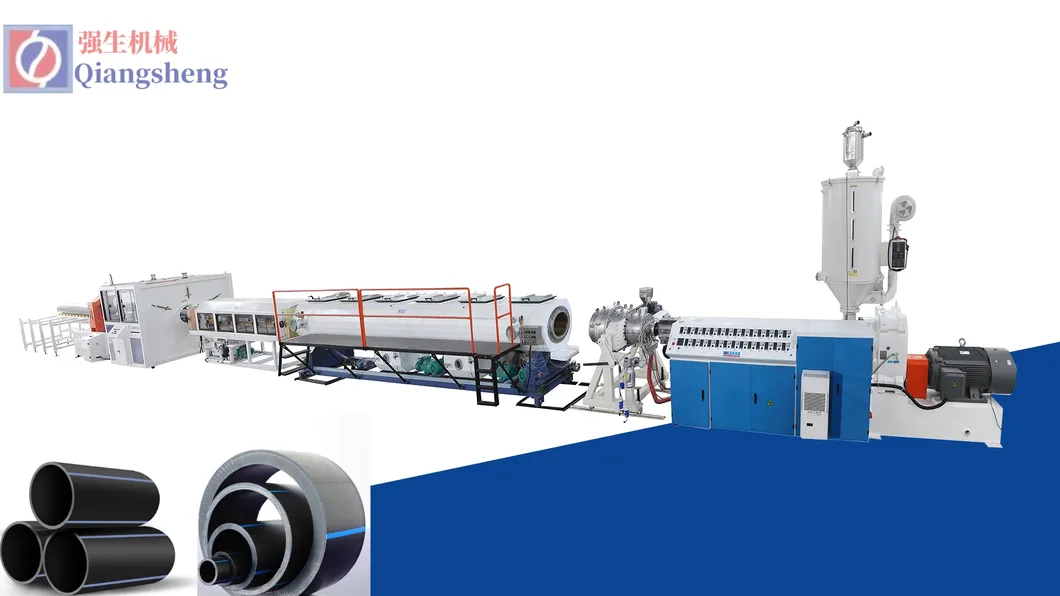

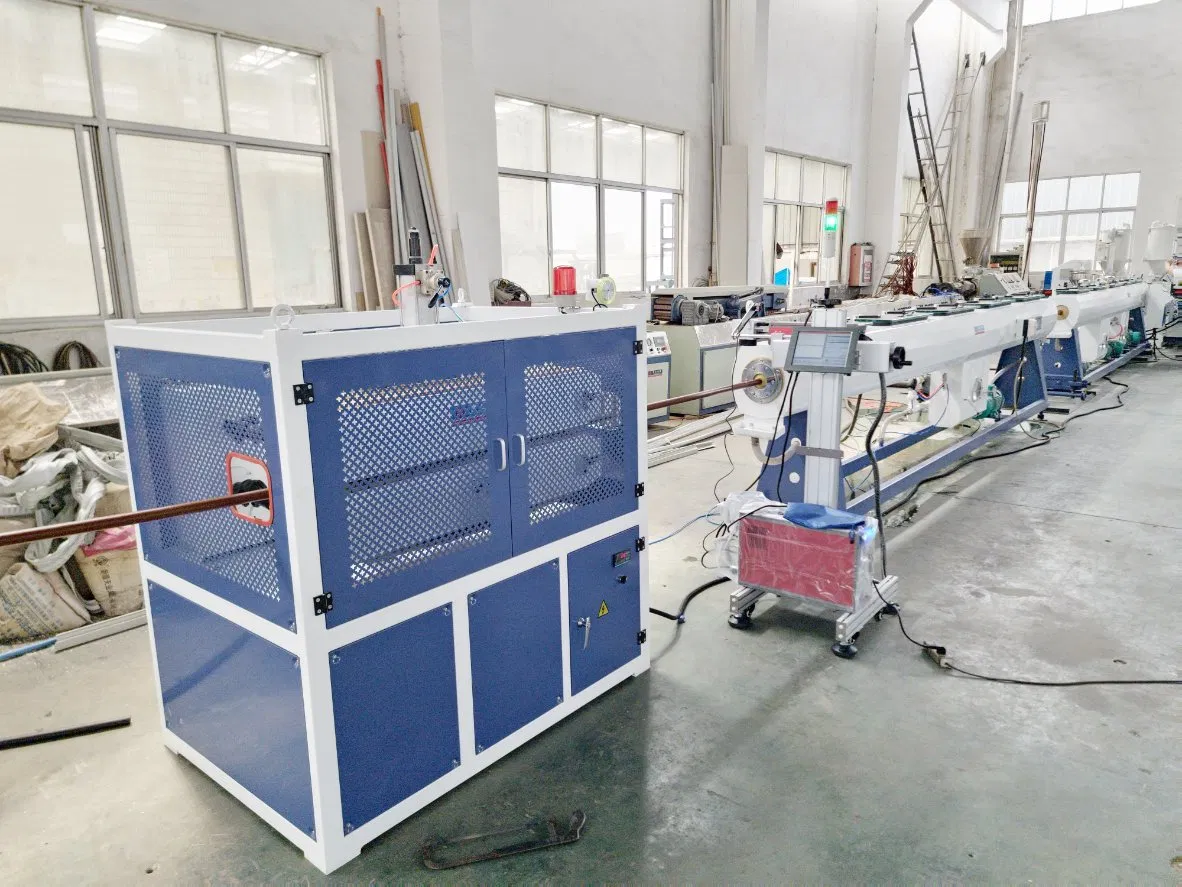

HDPE Pipe Line
📊 Model Parameters
Model Pipe Range (mm) Extruders Max. Output (kg/h) Total Power (kw)
PE-6316-63SJ65/30 SJ25/2510075
PE-11050-110SJ90/30 SJ25/25180130
PE-16063-160SJ90/30 SJ25/25200150
PE-250110-250SJ90/33 SJ25/25320185
PE-315160-315SJ100/30 SJ30/25350220
PE-450250-450SJ120/33 SJ30/25500300
PE-630315-630SJ150/30 SJ40/25600330
PE-800400-800SJ150/33 SJ40/25800400
PE-1200600-1200SJ150/33 SJ40/251000550

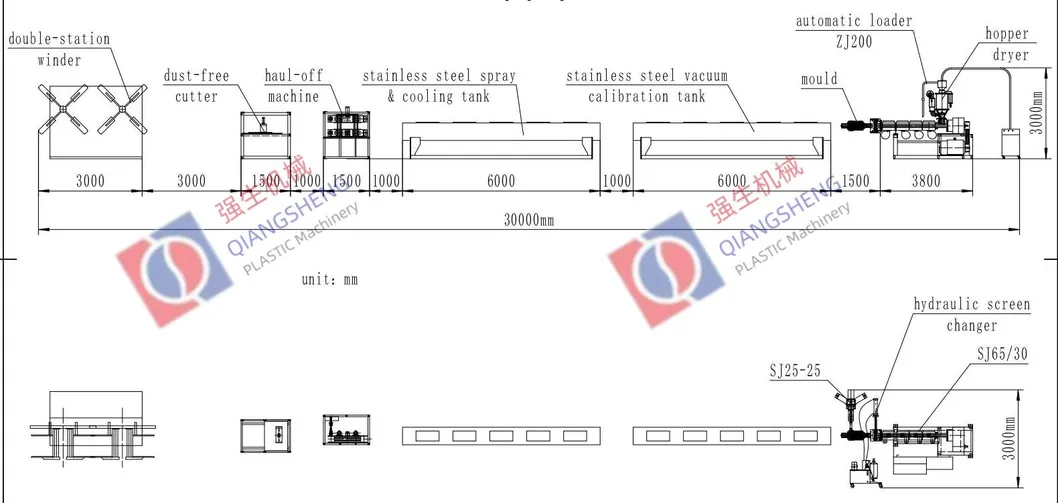

Machine Detail
🛠️ System Components
Automatic loader & Hopper dryer
Single-screw extruder & Co-extruder
High-precision Mould

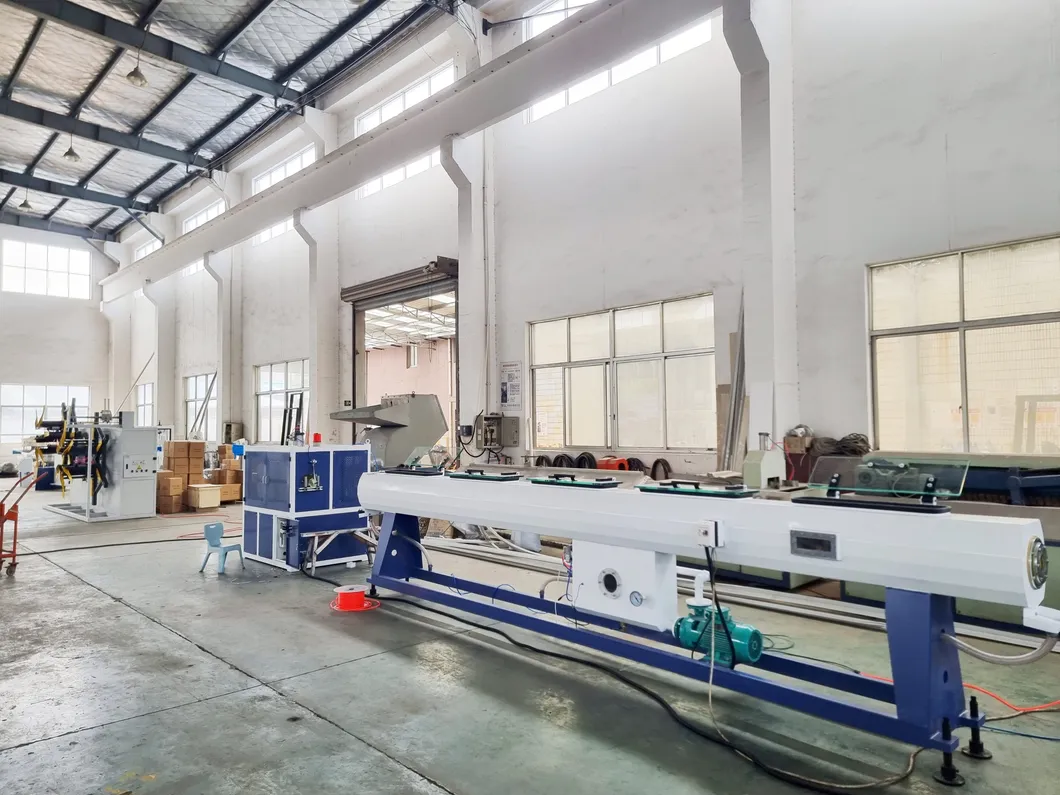

Stainless steel vacuum calibration tank
Stainless steel cooling & spray tank
Multi-claw haul-off machine
Planetary cutter & Stacker
🔄 Production Flow Chart
Raw material + additive → Mixing → Vacuum feeding → Hopper dryer → Single screw extruder → Color band extruder → Mould and calibrator → Vacuum calibration → Cooling tank → Haul-off machine → Cutting machine → Stacker/Winding machine.
💡 Other Production Lines

PVC Pipe Extrusion Line

Fiber Reinforced Hose Line

PE Two-layers Line

🚢 Packaging & Delivery
Package Size
1200cm * 230cm * 230cm
Gross Weight
5000.00kg
Wrapping
PE Film Winding Wrapping
Shipping
❓ Frequently Asked Questions
Q1: What are the payment terms?
A1: 30% down payment as a deposit, with the remaining 70% balance paid before shipping.
Q2: Do you provide installation services?
A2: Yes, we send professional engineers to your factory to assist with the installation and testing of every set of machinery.
Q3: Which certifications do your machines have?
A3: Our machines are CE, SGS, and ISO certified. We can also assist in applying for other specific certificates if required.
Q4: What about machine warranty and spare parts?
A4: We provide a 1-year guarantee and offer 1 year's worth of wear-out spare parts for free. Our engineers are available for remote diagnostics and on-site repairs.
Q5: Can the machine voltage be customized?
A5: Yes, the standard is 380V 50Hz 3-phase, but we can configure it to any voltage according to the client's requirements.
