Automatic Gypsum Granules Machinery With Compact Structure

Customization:	Available
After-sales Service:	1 year
Warranty:	1 Year

Send Inquiry

Product Description

Technical Specification

Model NO.

DH360/DH450/DH650/DH850/DH1050

Certification

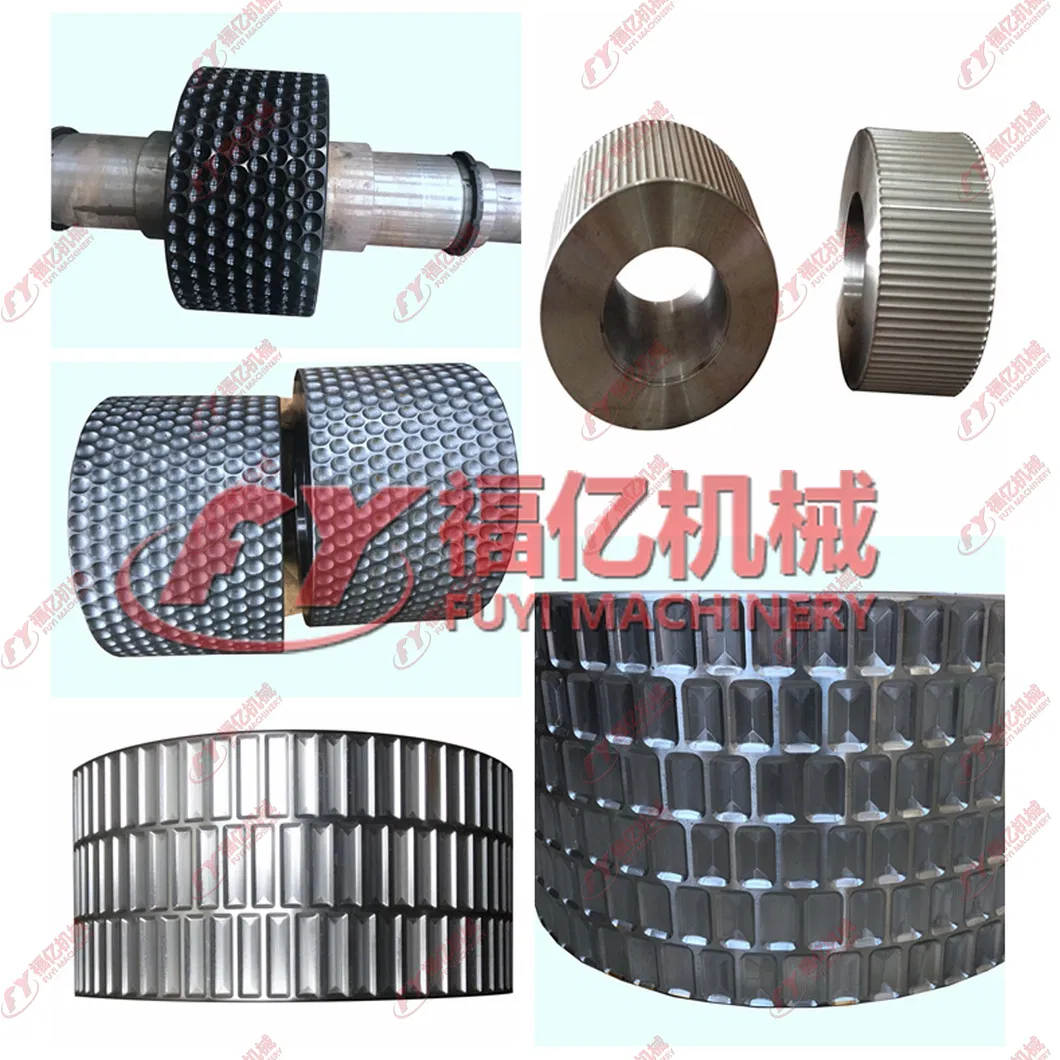

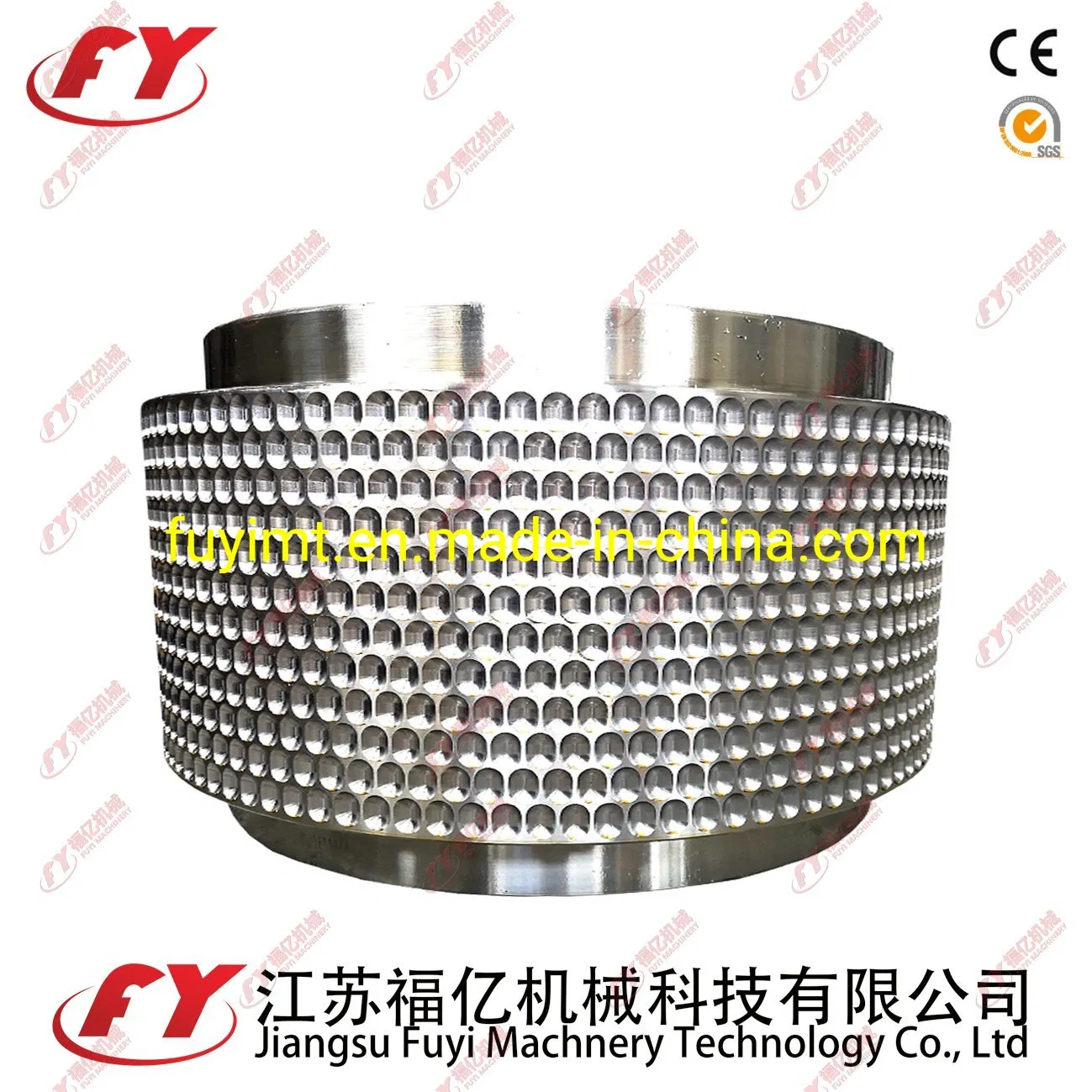

Roller Material

Alloy Steel

Raw Materials

Zinc oxide, Gypsum, etc.

Capacity

1-10t/h/unit

Final Hardness

30N

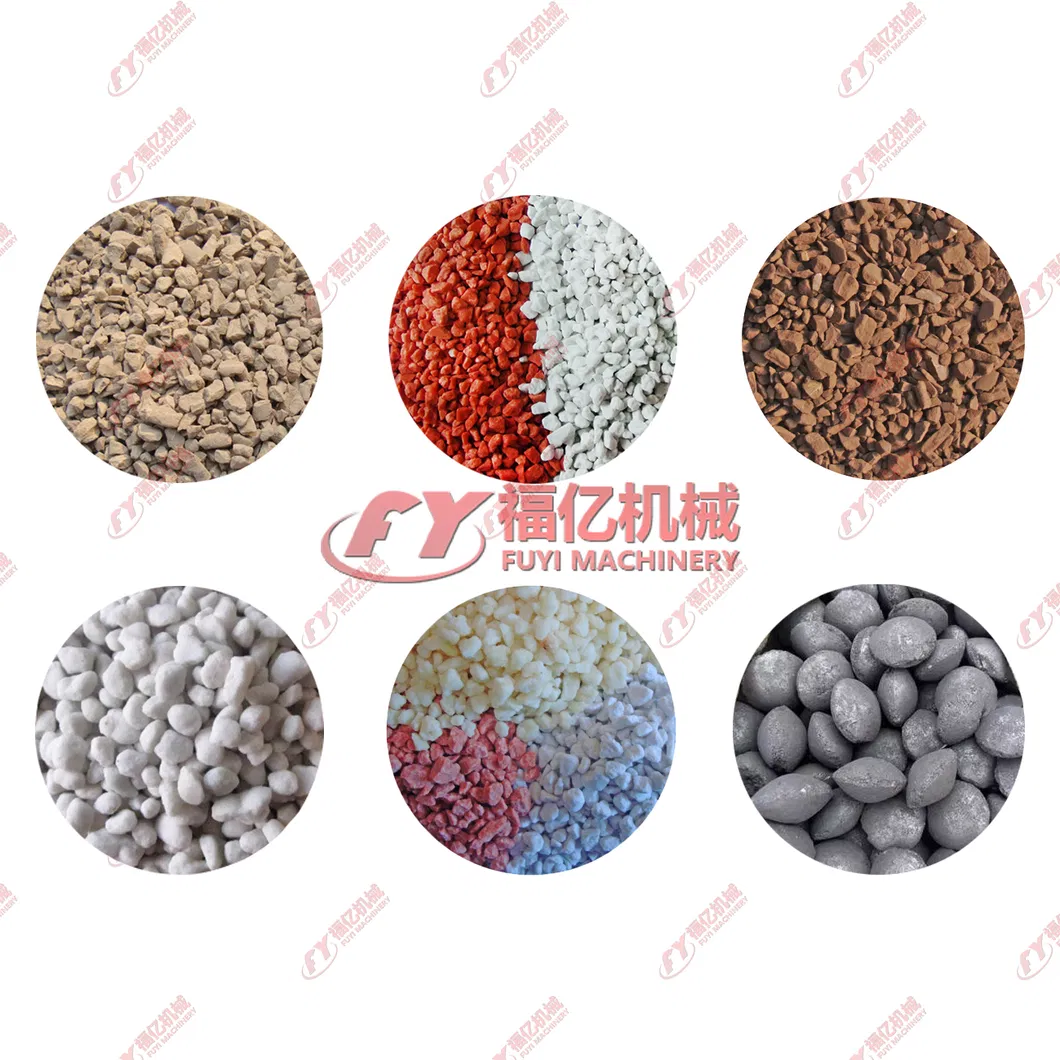

Granule Shape

Irregular

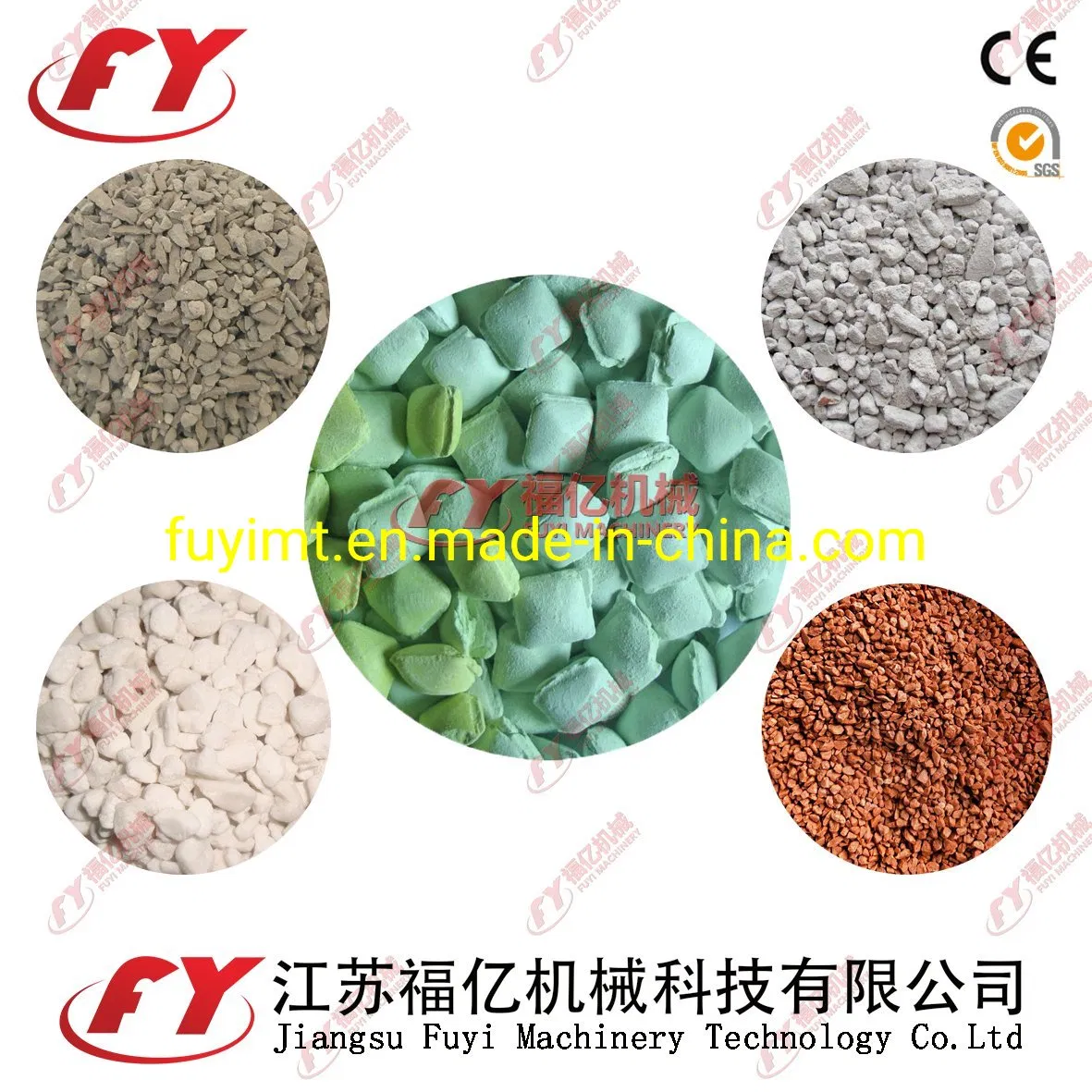

Granule Size

2-5mm

Working Temp

Normal temperature

Hydraulic System

Yes

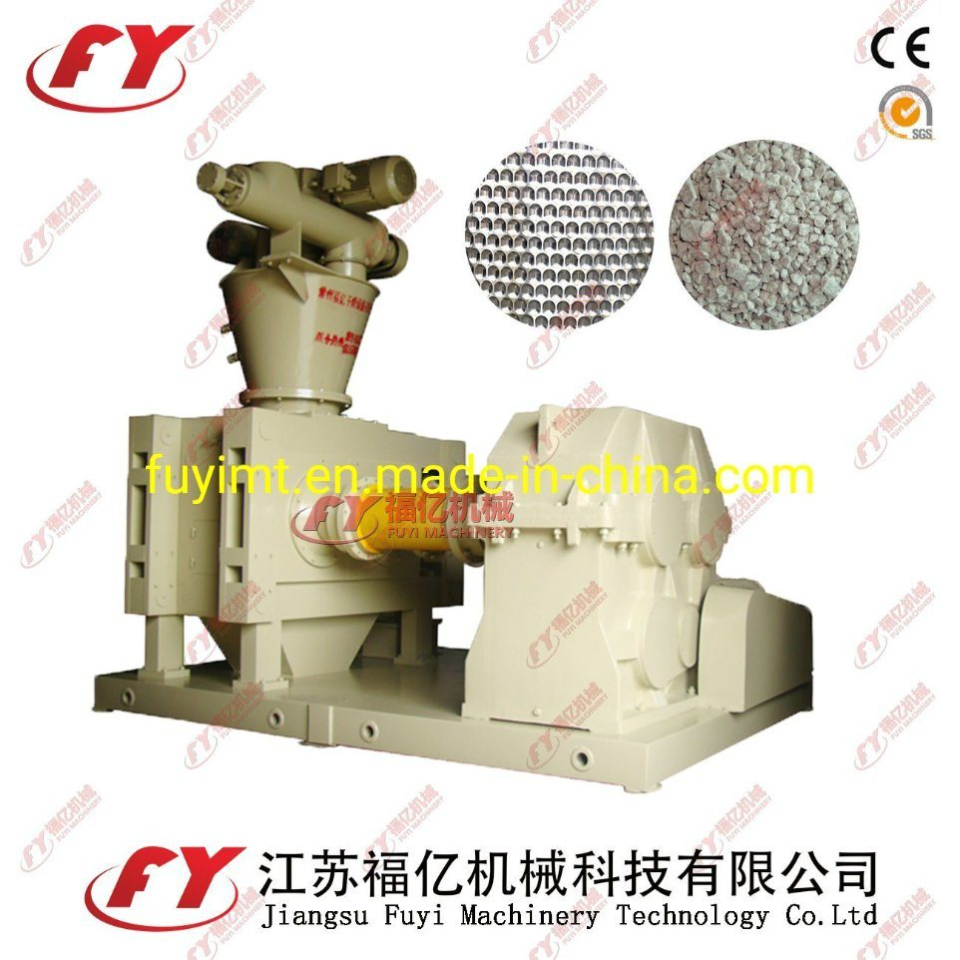

Automatic Gypsum Granules Machinery

Dry granulation process involves squeezing powder between two counter-rotating rollers to produce a continuous sheet or ribbon of materials. The DH series dry roll press granulator adopts dry rolling technology to compress powdery materials with moisture content ≤1% into pieces or tablets.

Through breaking and screening, lump materials are converted into granules meeting specific application requirements. The density of materials can increase 1.5–3 times during pressing, ensuring high granular strength.

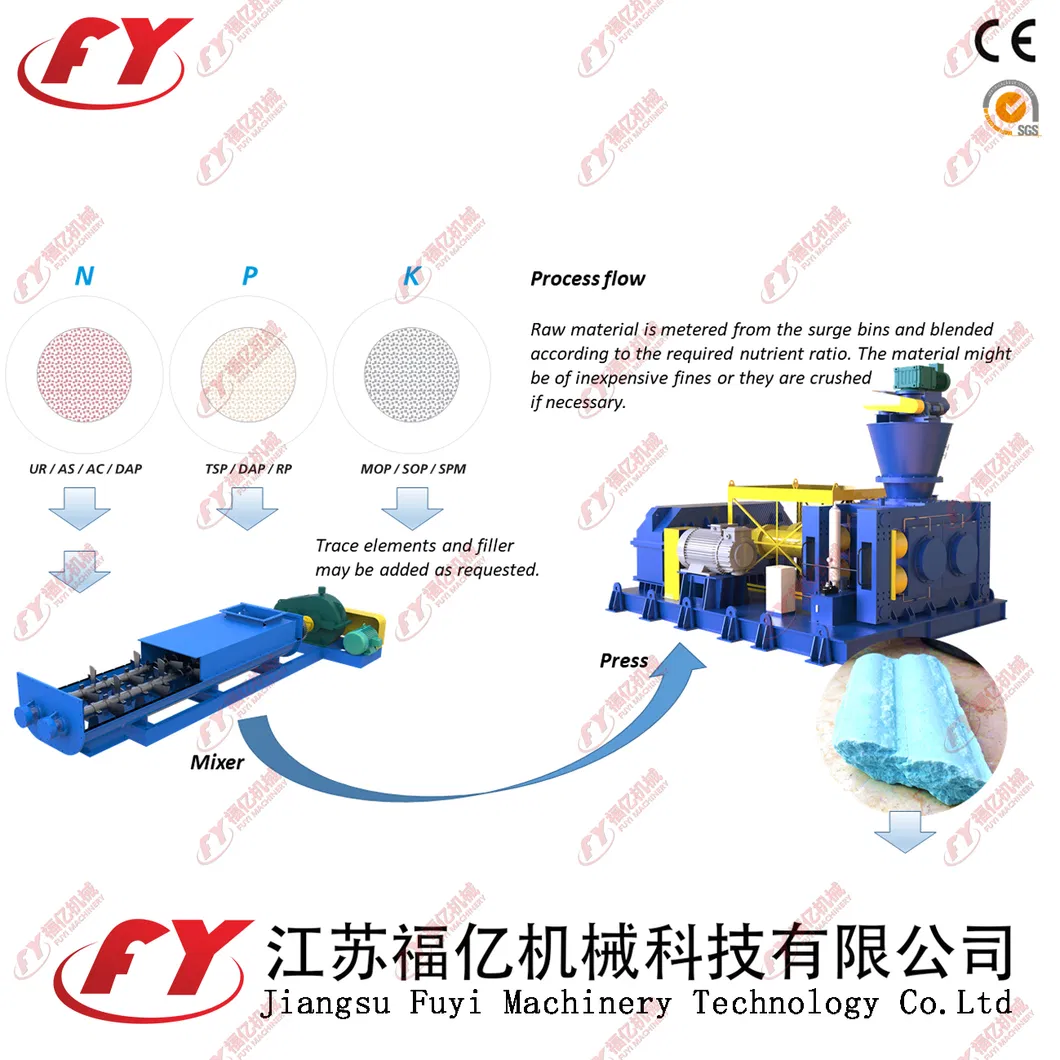

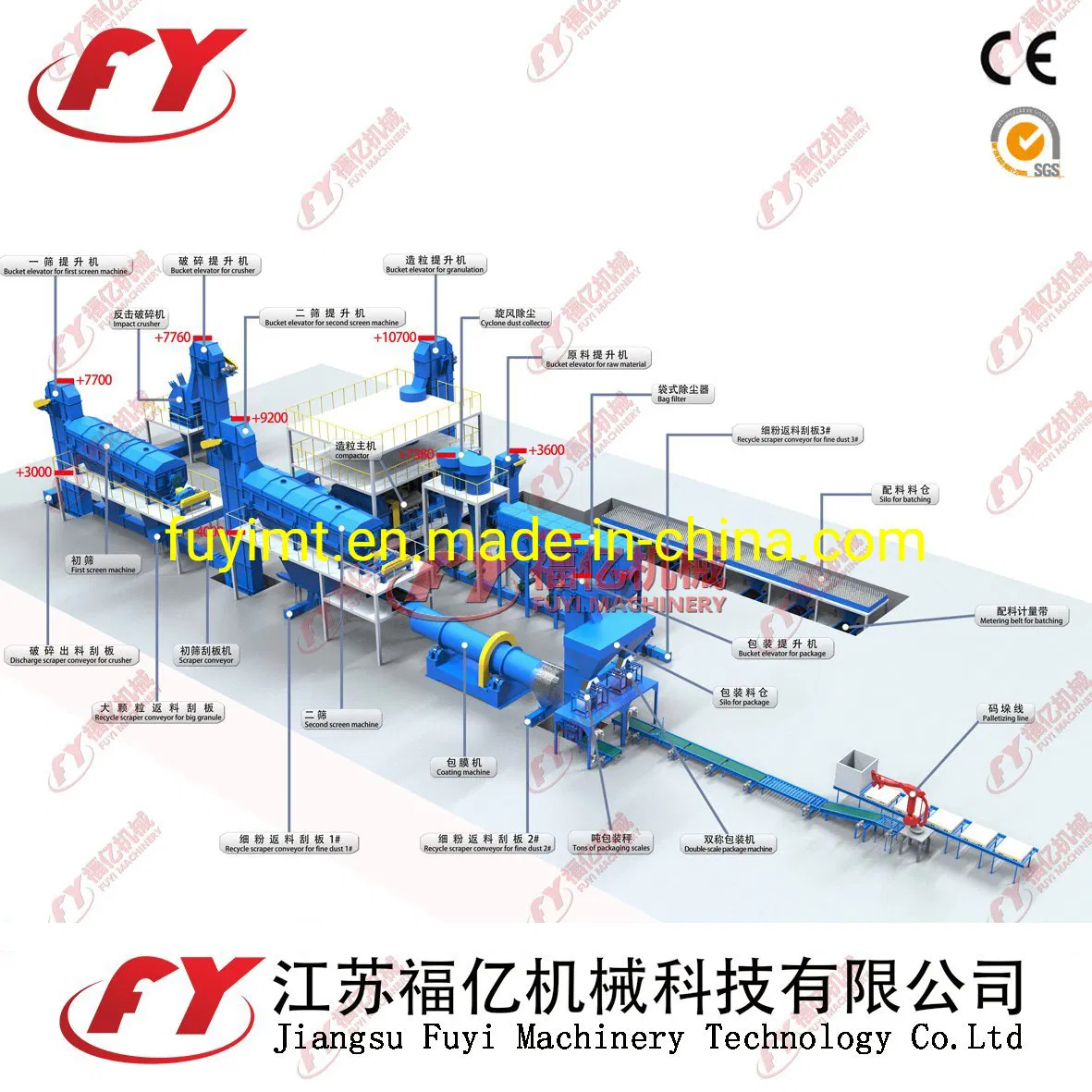

Working Principle & Process

01. Batching & Mixing Use belt scales to weigh raw materials according to formula and mix for uniform feeding.

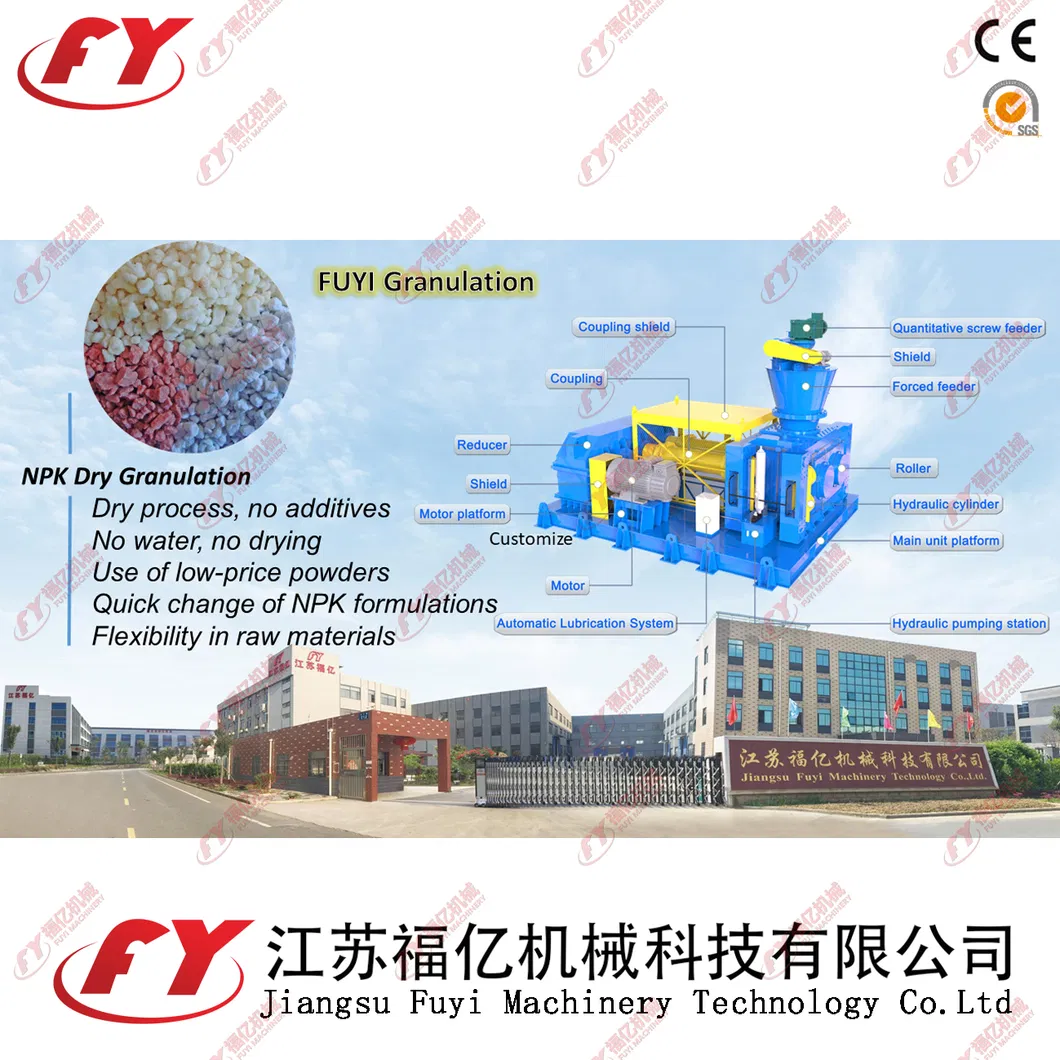

02. Compaction (DH Series Compactor) Double rollers compress the dry powder under mechanical pressure. This stage includes a dosage screw feeder, forced feeder, and flaking machine.

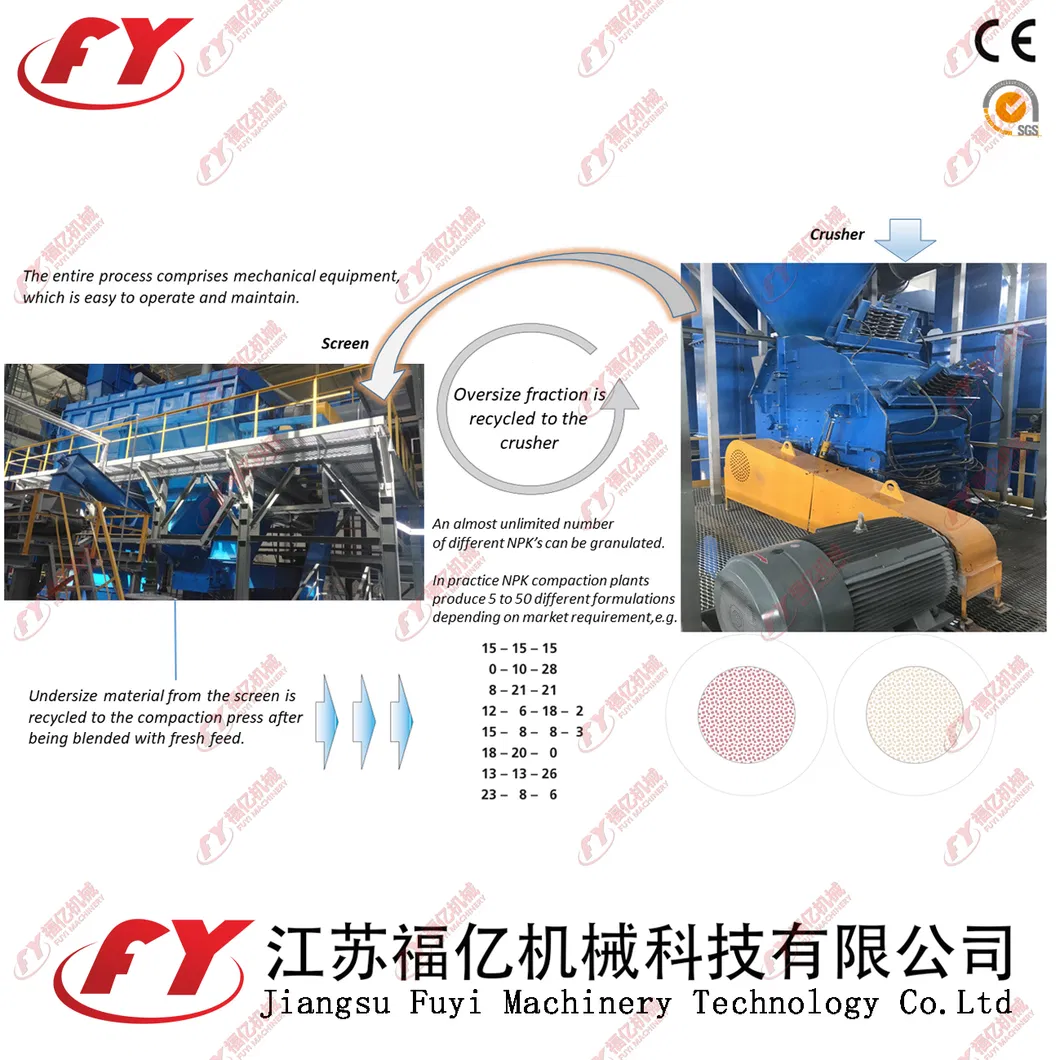

03. Crushing & Screening Crush bar-shaped products into 2-4mm irregular granules and use a rotary screen to sieve the final products.

04. Coating & Packaging Optional coating to avoid clumping, followed by automated packaging (25-50kg/bag or Ton-bag).

05. Dust Collection Two-stage removal (cyclone + bag filter) to ensure a clean workshop environment.

Main Features

Adjustable granular strength via roller pressure control.
Continuous cycle operations for high yield.
No additives required, ensuring product purity.
Direct granulation without follow-up drying processes.
Compact structure with low energy consumption and low failure rate.
Frequency adjustment control for high automation.

Technical Parameters

Model	DH360	DH450	DH650	DH850	DH1050
Roller speed (rpm)	10-25	10-25	10-25	9-16	8.5-14.5
Max sheet thickness (mm)	8	12	16	25	36
Rolled sheet output (kg/h)	1300-2300	2500-3500	5000-7000	12000-16000	22000-38000
Finished output (kg)	900-1300	1800-2500	3500-4000	6000-8000	12000-16000
Main power (KW)	30-37	55-75	90-110	220-250	400
Total weight (t)	7	10	21	46	75-85

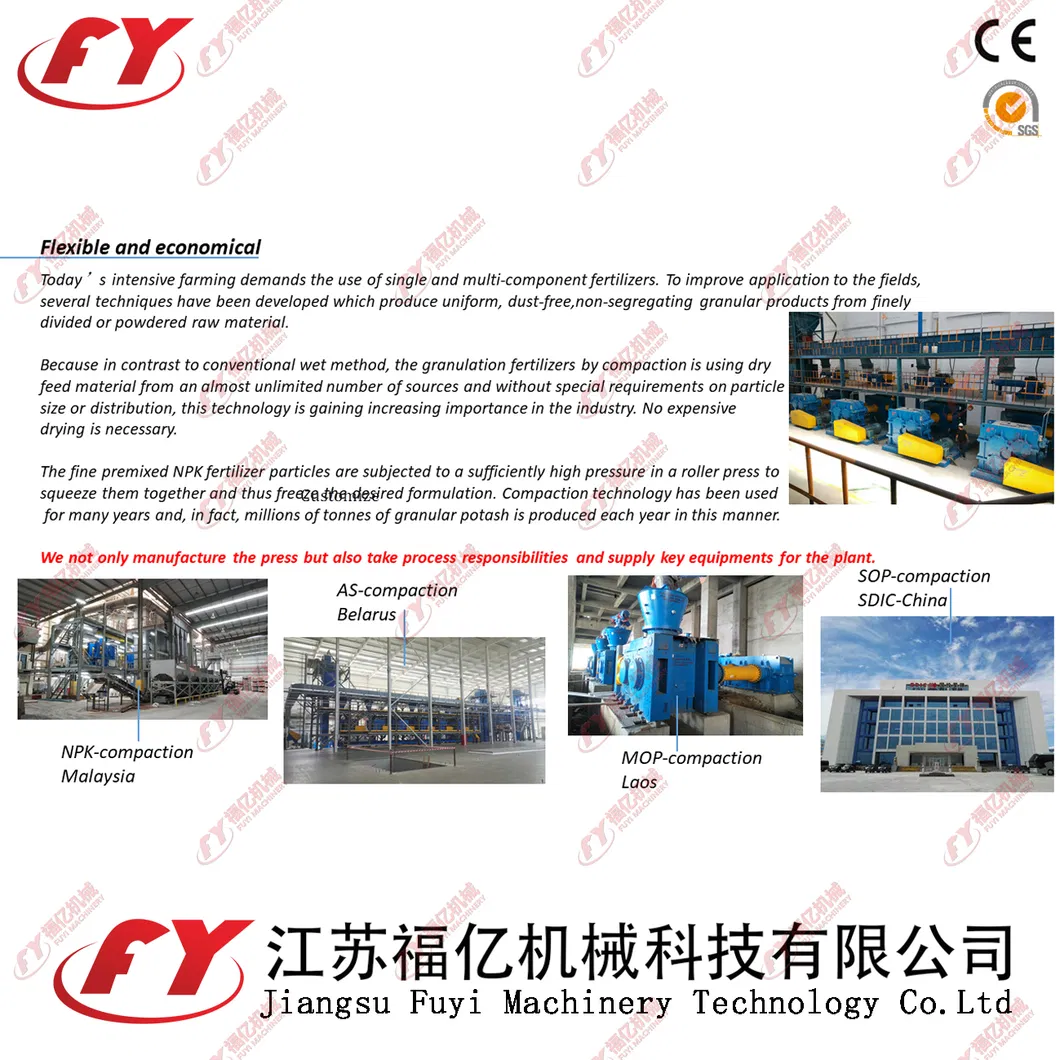

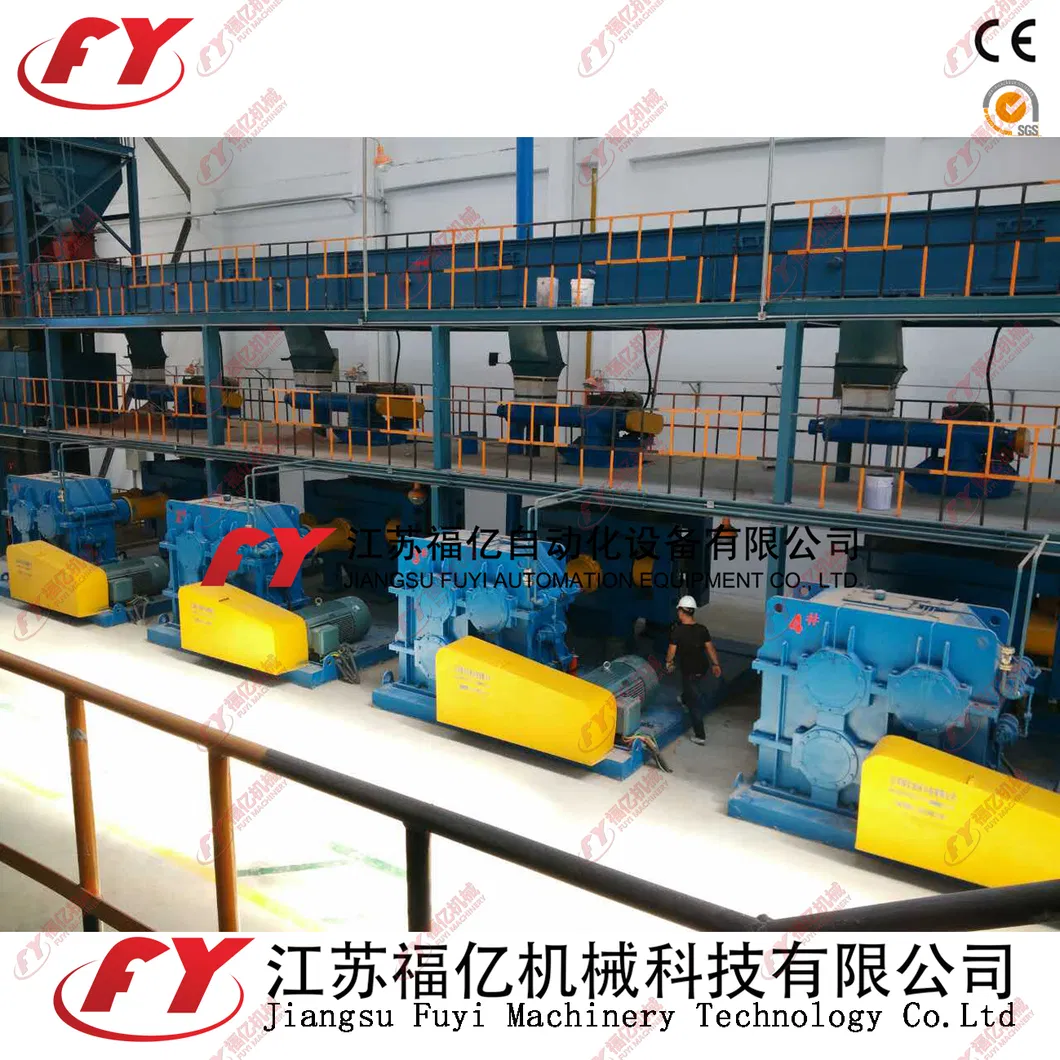

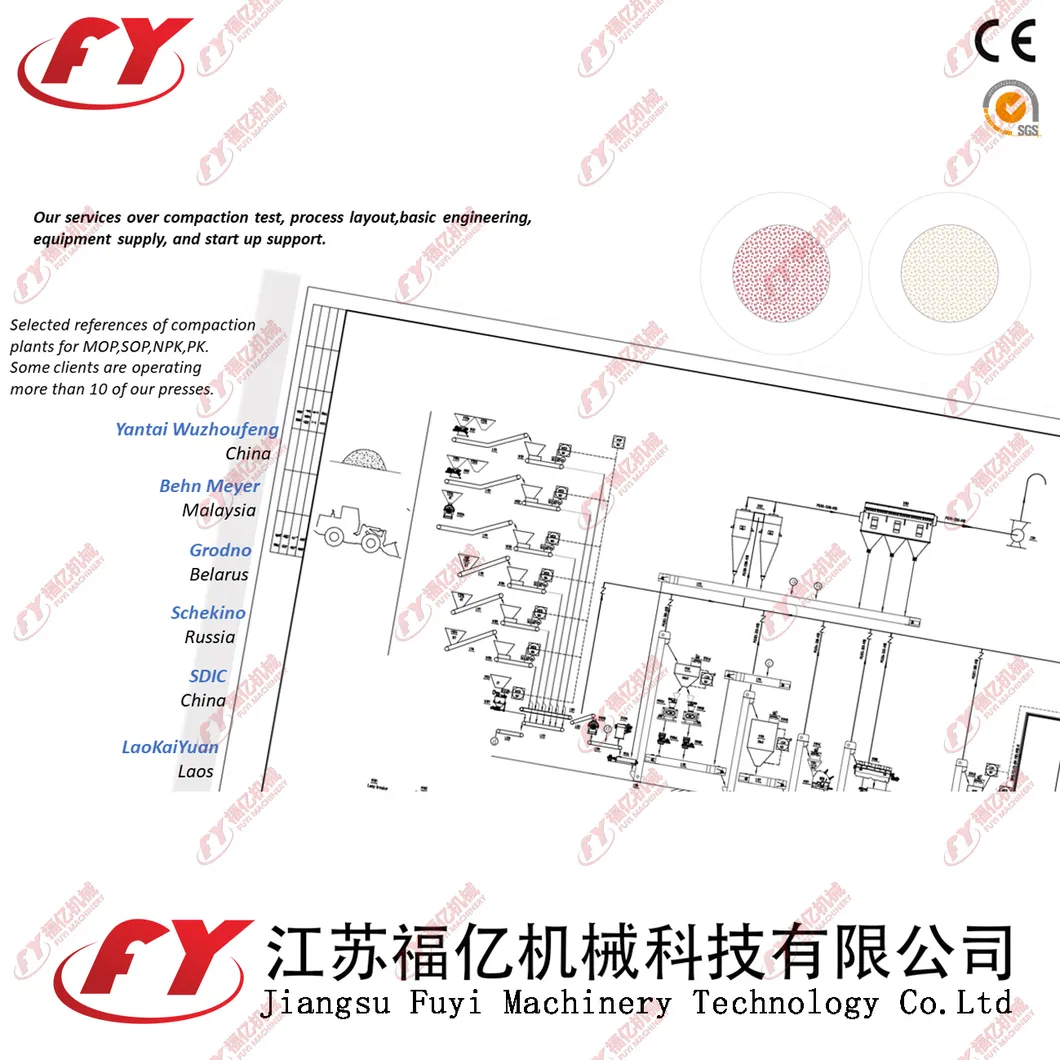

Project Success Cases

Ammonium Sulphate Plant: Annual production of 150,000 tons using 6 sets of DH650.

Potassium Sulphate Plant: 30 tons/hour capacity using 4 sets of DH850.

Potassium Fertilizer Plant: 200 tons/day capacity using 5 sets of DH650.

Compound Fertilizer Plant: 20 tons/hour capacity using 2 sets of DH1050.

Our Professional Service

Frequently Asked Questions

What materials are suitable for dry granulation?

Powdery materials with a moisture content of ≤1%, such as zinc oxide, gypsum, ammonium sulphate, and potassium fertilizer, are ideal for this equipment.

Can the size and hardness of the granules be adjusted?

Yes. Granule strength is adjusted via roller pressure, and granule size (typically 2-5mm) is determined by the crusher mesh design.

Is a drying process required after granulation?

No. Since the equipment uses dry rolling technology, powders are granulated directly without the need for subsequent drying.

How does the machinery handle dust pollution?

The system includes a two-stage dust collection process using a cyclone dust collector and a bag filter to return dust to the granulation process.

What is the production capacity of the DH series?

Depending on the model, capacity ranges from 1 ton per hour to 10 tons per hour per unit.

Is customized voltage available?

Yes, the voltage and power configurations can be customized based on your local industrial requirements.
